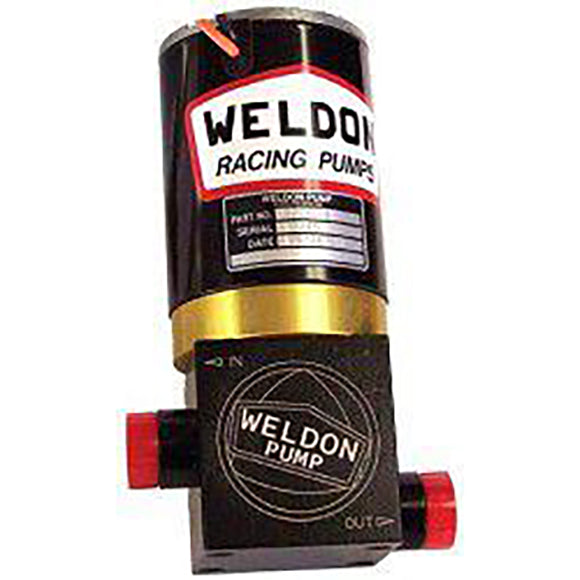

Weldon High Pressure Fuel Pump

Weldon High Pressure Fuel Pump

SKU: WEL-D2015-A

Ideal for Road Racing and high performance Street/Strip cars with Carbureted or EFI engines.

Regular price
$728.36
Sale price
$728.36
Unit price
per

Popular Products

Weldon
High Pressure Fuel Pump

Description

Ideal for Road Racing and high performance Street/Strip cars with Carbureted or EFI engines.

Maximum HP:

1000 hp @ 14V EFI (500 hp on Methanol)

1050 hp @14V carb (525 hp on Methanol)

GPH/PSI Range:

85-115 GPH/0-160 PSI

D2015-A Features:

    • Female AN-8 Inlet and Outlet
    • All billet body pump that is 100% serviceable/repairable
    • Self Priming - may be mounted above fuel cell vertical or horizontal position
    • Breakaway couplping prevents pump/motor damage in the event of contamination
    • All internal wear components are 100% metallic (high speed tool steel and bronze)
    • Body machined from billet aluminum
    • For carbureted or injected engines
    • Provides Consitent Performance with no fall-off in flow
    • Precise fuel delivery
    • Blades self-compensating for wear
  • Weight - 5.5 lbs

Compatible Fuels:

Weldon Pump offer the widest range of fuel compatibility.

Gasoline - Methanol - Nitromethane - Diesel - Ethanol - All racing fuels

Comments:

Requires appropriate bypass regulator, a -6 return line at a minimum is recommended.
