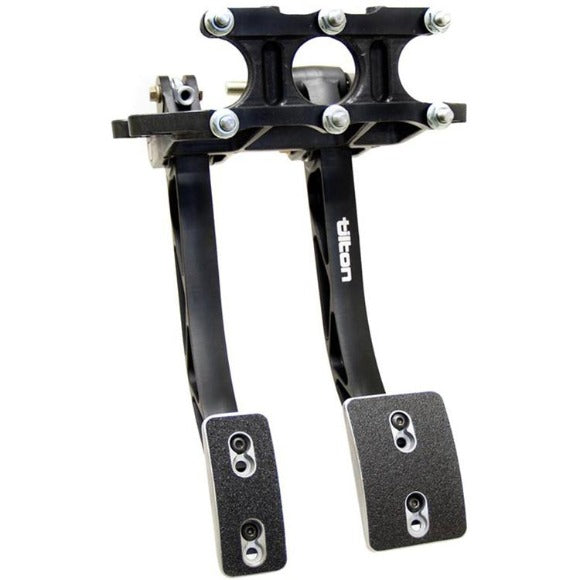

Tilton 600-Series Overhung-Mount Aluminum Pedal Assembly

Tilton 600-Series Overhung-Mount Aluminum Pedal Assembly

SKU: TIL72-608
Tilton’s 600-Series overhung-mount aluminum pedal assembly features traditional fixed-mount master cylinder and balance bar technology and provides excellent performance.

Regular price
$250.75
Sale price
$250.75
Unit price
per

Popular Products

Tilton
Overhung-Mount Aluminum Pedal Assembly

Description

600-Series Overhung-Mount Aluminum Pedal Assembly

Tilton’s 600-Series overhung-mount aluminum pedal assembly features traditional fixed-mount master cylinder and balance bar technology and provides excellent performance.


Tilton 72-608 Features:

  • Forged aluminum pedals are engineered for high rigidity and low weight.
  • Adjustable pedal ratio (5.0:1 – 6.2:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
  • Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences.
  • Large diameter 7/16”-20 balance bar provides maximum rigidity. PTFE coated aluminum clevises for increased durability and reduced friction.
  • Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease constriction.
  • Lightweight aluminum frame features guide “ramps” to reduce balance bar tipping, decreasing friction and improving brake repeat-ability.

Tilton 72-608 Typical Applications:

  • Road Racing
  • Endurance
  • Off Road
  • High Performance Street/Strip
  • Circle Track
  • Rally
  • Drifting

Tilton Pedal Assembly Specifications:

Mounting location: Under Dash
Pedal material: Forged aluminum
Weight: 4.8 lbs (2.2 kg)
