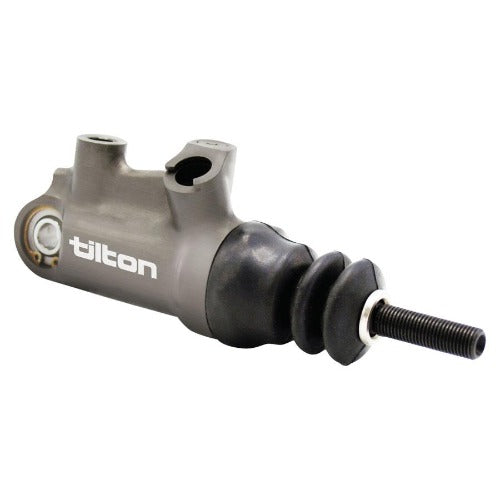

Tilton 79-Series Master Cylinders

Tilton 79-Series Master Cylinders

SKU: TIL79-625
Tilton is proud to release their new range of 79-Series master cylinders. 79-Series master cylinders are specifically designed for use with Motorsport ABS systems.

Regular price
$0.00
Sale price
$0.00
Unit price
per

Popular Products

Tilton
79-Series Master Cylinders

Description

Tilton is proud to release their new range of 79-Series master cylinders. 79-Series master cylinders are specifically designed for use with Motorsport ABS systems. Unlike traditional master cylinders, 79-Series master cylinders do not utilize a conventional cut-off port, and instead, feature a new port strategy with a mechanically opened cut-off/compensation path. Elimination of the cutoff port greatly reduces the chance of seal damage caused by high pressure pulsations from the ABS system.

Available Sizes: 5/8" Dia, 7/10" Dia, 3/4" Dia, 13/16" Dia, 7/8"

Features

  • New compensation port strategy designed for use with ABS systems
  • No port or orifice for seals to cross over and get damaged
  • Directly interchangeable with Tilton 77‐Series and 78‐Series master cylinders
  • Billet aluminum body with proprietary low‐friction coatings minimize wear and provides smooth operation
  • Rear spherical bearing mount and one‐piece piston / pushrod eliminates side thrust into the master cylinder bore, providing consistent and repeatable braking
  • Hand‐built, blueprinted and function tested
  • Serialized and recorded into Tilton build database
  • AN3 outlet port
  • Male AN4 o‐ring seal inlet swivel fitting (sold separately, P/N 79‐523)
  • Fits Tilton 800-Series and 900-Series pedal assemblies.
