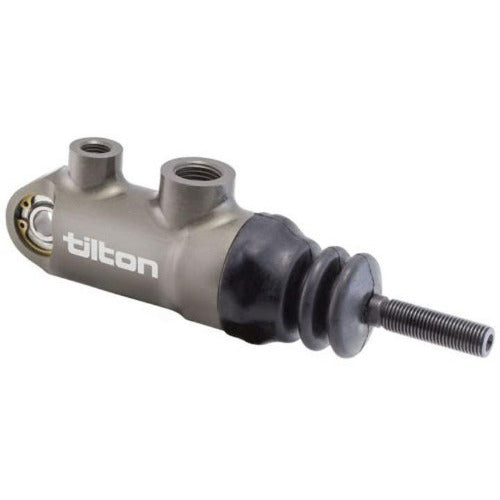

Tilton 78-Series Master Cylinders

Tilton 78-Series Master Cylinders

SKU: TIL78-625
78-Series master cylinders offer the latest in racing master cylinder technology in a very lightweight and compact design.

Regular price
$0.00
Sale price
$0.00
Unit price
per

Popular Products

Tilton
78-Series Master Cylinders

Description

78-Series master cylinders offer the latest in racing master cylinder technology in a very lightweight and compact design. The rear spherical bearing mount and one-piece piston/pushrod eliminate side thrust into the master cylinder bore, providing consistent and repeatable braking.

Directly interchangeable with 77-Series Master Cylinders.

Available in 7 services: 5/8" Dia, 7/10" Dia, 3/4" Dia, 13/16" Dia, 7/8" Dia, 1" Dia, 1-1/8" Dia.

78-Series Master Cylinder Features

  • 40% lower price than 77‐Series master cylinders they replace ($235 vs $395 Retail)
  • Directly interchangeable with 77‐Series master cylinders
  • Billet aluminum body with proprietary low‐friction coatings minimize wear and provides smooth operation
  • Rear spherical bearing mount and one‐piece piston/pushrod eliminates side thrust into the master cylinder bore, providing consistent and repeatable braking
  • Hand‐built and blueprinted for cut‐off port travel
  • External dust boot included
  • O‐ring seal at the main rod guide and body interface
  • 1.1” of stroke
  • AN3 outlet port and AN6 inlet port
  • 7 bore sizes available
  • Fits Tilton 800-Series and 900-Series pedal assemblies
