Setrab Thermal Switch Assemblies (180° and 190°)

Setrab Thermal Switch Assemblies (180° and 190°)

SKU: SET31-TS180-06

Regular price
$0.00
Sale price
$0.00
Unit price
per

Popular Products

Setrab

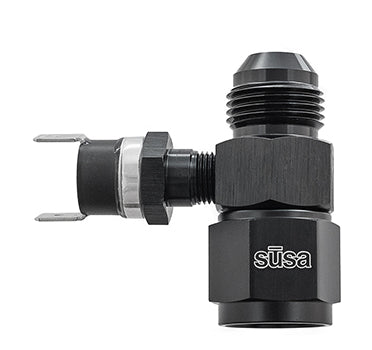

Thermal Switch Assemblies (180° and 190°)

Description

Install directly in the oil line and provide an automatic switch to turn on electric fan or electric external differential / transmission pump.

Temperature AN Size Part Number
180ºF –6 SET31-TS180-06
–8 SET31-TS180-08
–10 SET31-TS180-10
–12 SET31-TS180-12
–16 SET31-TS180-16
190ºF –6 SET31-TS190-06
–8 SET31-TS190-08
–10 SET31-TS190-10
–12 SET31-TS190-12
–16 SET31-TS190-16

Switch Specifications
Terminal size Amp #250 tab
Circuit resistance 50mΩ max.
Insulation resistance 100MΩ min. at DC 500V
Dielectric strength AC 1250V for one minute, or
AC 1800V for three seconds
Electrical rating 16A 250VAC\15A 125VAC
10A 250VAC (resistive load)
Operating life and approvals UL CUL 100,000 cycles: 15A 125VAC / 10A 250VAC
ENEC17 100,000 cycles: 15A 125VAC / 10A 250VAC
10,000 cycles: 16A 250VAC
CQC 10,000 cycles: 16A 250VAC
TUV 100,000 cycles: 16A 250VAC
