PAGID Racing is the exclusive motorsport brand of the TMD Performance. As a member of the TMD Friction Group, TMD Performance is the worldwide sole distributor of PAGID Racing products and high performance brake pads for street legal cars.

Find your brake pads by shape number below.

Pagid Brake Pads

​
Shape No. Length Width Pad Thickness

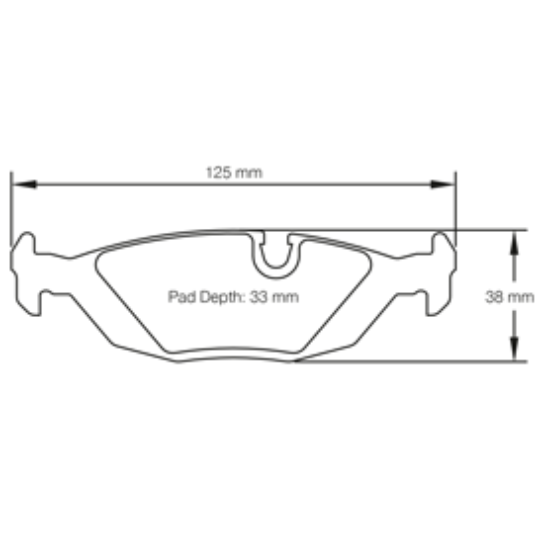

1141 125.0 mm 38.0 mm 17.0 mm
1144 158.0 mm 57.0 mm 19.5 mm
1146 104.0 mm 66.5 mm 15.5 mm
1151 61.8 mm 54.0 mm 13.5 mm
1158 78.0 mm 52.0 mm 15.0 mm
1163 90.0 mm 54.0 mm 13.7 mm
1177 61.8 mm 54.0 mm 15.5 mm
1190 110.0 mm 60.0 mm 19.0 mm
1191 117.3 mm 73.0 mm 18.5 mm
1192 102.0 mm 53.0 mm 17.0 mm
1193 102.0 mm 53.0 mm 20.0 mm
1195 117.3 mm 73.0 mm 24.0 mm
1203 97.8 mm 66.0 mm 17.5 mm
1204 132.0 mm 71.0 mm 18.0 mm
1265 113.5 mm 52.0 mm 16.0 mm
1267 130.0 mm 65.0 mm 20.0 mm
1269 126.7 mm 56.0 mm 17.0 mm
1270 132.0 mm 56.0 mm 20.0 mm
1276 145.0 mm 67.0 mm 19.5 mm
1283 100.0 mm 47.0 mm 20.0 mm
1285 123.0 mm 44.0 mm 16.8 mm
1287 131.5 mm 68.0 mm 18.0 mm
1291 100.0 mm 73.0 mm 17.8 mm
1295 156.3 mm 64.0 mm 19.5 mm
1323 107.3 mm 45.0 mm 14.5 mm
1361 132.0 mm 56.0 mm 17.0 mm
1362 59.3 mm 51.5 mm 10.5 mm
1363 70.0 mm 58.0 mm 15.0 mm
1406 119.0 mm 62.0 mm 14.5 mm
1408 110.0 mm 69.0 mm 15.0 mm
1427 120.0 mm 74.0 mm 17.2 mm
1538 152.0 mm 63.0 mm 25.0 mm
1544 94.7 mm 52.0 mm 17.5 mm
1580 63.8 mm 64.0 mm 14.5 mm
1587 76.7 mm 65.0 mm 15.0 mm
1591 150.0 mm 58.0 mm 15.6 mm
1595 132.0 mm 62.0 mm 16.0 mm
1607 132.0 mm 62.0 mm 20.0 mm
1610 105.0 mm 55.0 mm 12.0 mm
1616 140.0 mm 61.0 mm 16.0 mm
1617 140.0 mm 61.0 mm 16.0 mm
1618 140.0 mm 61.0 mm 28.0 mm
1619 140.0 mm 61.0 mm 26.0 mm
1620 141.0 mm 48.0 mm 16.5 mm
1674 132.0 mm 62.0 mm 25.0 mm
1678 156.0 mm 74.0 mm 19.5 mm
1682 123.0 mm 59.0 mm 13.0 mm
1702 130.0 mm 59.0 mm 19.0 mm
1703 109.0 mm 47.0 mm 12.0 mm
1705 100.0 mm 47.0 mm 16.0 mm
1743 119.0 mm 70.0 mm 16.0 mm
1744 119.0 mm 70.0 mm 19.5 mm
1749 113.5 mm 46.0 mm 16.0 mm
1813 152.0 mm 58.0 mm 25.0 mm
1842 132.0 mm 75.0 mm 18.0 mm
1852 152.0 mm 58.0 mm 18.0 mm
1896 140.0 mm 61.0 mm 20.0 mm
1897 99.0 mm 37.0 mm 14.5 mm
1903 152.0 mm 63.0 mm 18.0 mm
1904 152.0 mm 63.0 mm 18.0 mm
1908 132.0 mm 75.0 mm 24.0 mm
1916 97.8 mm 66.0 mm 24.0 mm
2016 164.0 mm 66.0 mm 30.0 mm
2017 164.0 mm 77.0 mm 30.0 mm
2019 164.0 mm 75.5 mm 30.0 mm
2053 80.0 mm 56.0 mm 20.0 mm
2105 85.0 mm 68.0 mm 22.0 mm
2126 132.0 mm 56.0 mm 17.0 mm
2180 151.0 mm 58.0 mm 17.2 mm
2205 121.0 mm 61.0 mm 20.0 mm
2206 121.0 mm 67.0 mm 20.0 mm
2213 183.0 mm 63.0 mm 15.0 mm
2275 155.0 mm 74.0 mm 19.5 mm
2388 95.0 mm 49.0 mm 18.5 mm
2405 121.0 mm 86.0 mm 18.5 mm
2407 114.0 mm 78.0 mm 15.5 mm
2474 140.0 mm 89.0 mm 18.5 mm
2487 132.0 mm 77.0 mm 16.0 mm
2488 163.6 mm 67.0 mm 29.0 mm
2555 121.0 mm 60.0 mm 20.0 mm
2557 163.0 mm 68.6 mm 29.0 mm
2558 163.0 mm 68.6 mm 31.0 mm
2559 163.0 mm 68.6 mm 32.0 mm
2560 163.0 mm 74.3 mm 30.0 mm
2564 163.0 mm 74.3 mm 30.0 mm
2593 76.8 mm 66.0 mm 14.6 mm
2623 148.6 mm 58.0 mm 17.3 mm
2683 156.3 mm 73.0 mm 19.0 mm
2685 123.0 mm 58.0 mm 17.0 mm
2687 163.6 mm 67.0 mm 20.0 mm
2688 163.0 mm 68.6 mm 26.5 mm
2704 132.0 mm 62.0 mm 26.5 mm
2707 190.0 mm 102.0 mm 18.0 mm
2723 61.8 mm 57.0 mm 18.0 mm
2830 194.4 mm 73.0 mm 20.0 mm
2845 190.0 mm 106.0 mm 16.0 mm
2931 97.6 mm 74.0 mm 16.5 mm
2959 140.0 mm 59.0 mm 17.3 mm
3102 63.0 mm 55.0 mm 14.4 mm
3190 63.0 mm 64.0 mm 14.4 mm
3242 77.9 mm 67.0 mm 15.5 mm
3276 100.0 mm 63.0 mm 18.0 mm
3277 140.0 mm 70.0 mm 24.0 mm
3278 140.0 mm 70.0 mm 30.0 mm
3279 140.0 mm 70.0 mm 28.0 mm
4011 138.0 mm 49.0 mm 15.5 mm
4122 55.4 mm 54.0 mm 14.7 mm
4304 61.8 mm 57.0 mm 15.0 mm
4345 130.0 mm 82.0 mm 16.7 mm
4346 149.0 mm 86.0 mm 16.7 mm
4349 113.5 mm 59.0 mm 16.0 mm
4501 76.7 mm 70.0 mm 15.0 mm
4503 76.7 mm 70.0 mm 19.0 mm
4507 76.8 mm 65.6 mm 16.5 mm
4508 94.8 mm 63.8 mm 16.0 mm
4509 126.8 mm 56.7 mm 15.6 mm
4580 202.0 mm 100.0 mm 15.3 mm
4581 193.0 mm 77.0 mm 15.0 mm
4623 76.8 mm 59.0 mm 18.5 mm
4634 76.8 mm 59.0 mm 15.0 mm
4702 90.0 mm 70.0 mm 19.0 mm
4703 90.0 mm 70.0 mm 15.0 mm
4823 151.3 mm 46.0 mm 18.0 mm
4905 78.4 mm 66.0 mm 15.5 mm
4906 132.0 mm 77.0 mm 16.3 mm
4907 176.0 mm 110.0 mm 16.0 mm
4908 193.6 mm 78.0 mm 17.5 mm
4909 187.5 mm 70.0 mm 16.0 mm
4910 154.0 mm 122.0 mm 20.0 mm
4912 132.0 mm 62.0 mm 16.0 mm
4913 151.3 mm 58.0 mm 17.9 mm
4916 132.0 mm 62.0 mm 15.0 mm
4917 209.5 mm 94.0 mm 16.0 mm
4918 187.5 mm 64.0 mm 16.3 mm
4920 155.0 mm 65.0 mm 22.0 mm
4921 110.4 mm 55.0 mm 20.0 mm
4922 198.0 mm 73.0 mm 17.3 mm
4923 160.4 mm 63.0 mm 29.0 mm
4924 198.0 mm 80.0 mm 16.6 mm
4925 187.5 mm 77.0 mm 18.0 mm
4927 198.0 mm 88.0 mm 18.5 mm
4928 155.0 mm 65.0 mm 28.0 mm
4929 110.4 mm 55.0 mm 26.0 mm
4931 114.5 mm 83.0 mm 17.5 mm
4932 116.0 mm 73.0 mm 18.0 mm
4933 73.8 mm 78.5 mm 16.5 mm
4934 209.5 mm 87.0 mm 19.5 mm
4935 209.5 mm 100.0 mm 19.4 mm
4936 109.4 mm 53.0 mm 16.7 mm
4937 189.8 mm 93.0 mm 17.6 mm
4938 131.0 mm 62.0 mm 17.0 mm
4939 116.5 mm 43.0 mm 16.2 mm
4940 101.7 mm 47.0 mm 17.5 mm
4941 189.6 mm 102.0 mm 16.2 mm
4943 132.0 mm 77.0 mm 16.0 mm
4945 189.5 mm 97.0 mm 18.9 mm
4946 132.0 mm 77.0 mm 17.9 mm
8000 99.8 mm 47.0 mm 16.0 mm
8001 156.3 mm 71.0 mm 20.0 mm
8003 190.0 mm 101.0 mm 17.5 mm
8004 190.0 mm 101.0 mm 19.5 mm
8005 164.7 mm 81.0 mm 16.4 mm
8006 130.5 mm 75.5 mm 19.0 mm
8008 130.5 mm 75.5 mm 17.0 mm
8009 97.8 mm 66.0 mm 15.5 mm
8010 135.0 mm 52.0 mm 17.0 mm
8011 176.0 mm 112.0 mm 16.0 mm
8018 152.0 mm 63.0 mm 17.0 mm
8019 193.0 mm 79.0 mm 20.0 mm
8021 139.5 mm 68.0 mm 16.2 mm
8023 125.0 mm 71.0 mm 15.5 mm
8027 98.0 mm 79.0 mm 17.4 mm
8028 152.0 mm 76.0 mm 16.0 mm
8029 116.2 mm 50.0 mm 16.5 mm
8030 140.0 mm 61.0 mm 17.0 mm
8031 111.6 mm 64.0 mm 16.0 mm
8032 72.8 mm 60.6 mm 17.5 mm
8033 140.0 mm 70.0 mm 17.5 mm
8035 123.0 mm 44.0 mm 16.5 mm
8037 132.0 mm 62.0 mm 22.0 mm
8038 163.6 mm 67.0 mm 22.0 mm
8039 116.6 mm 59.0 mm 16.8 mm
8040 76.3 mm 67.0 mm 16.0 mm
8041 80.8 mm 66.0 mm 15.5 mm
8042 98.3 mm 66.0 mm 16.0 mm
8043 172.4 mm 100.0 mm 18.0 mm
8044 164.0 mm 66.0 mm 18.0 mm
8046 105.5 mm 56.0 mm 17.2 mm
8049 103.6 mm 45.6 mm 16.0 mm
8050 132.0 mm 62.0 mm 15.0 mm
8053 155.1 mm 68.0 mm 20.3 mm
8055 61.8 mm 55.0 mm 17.5 mm
8056 50.3 mm 62.0 mm 17.0 mm
8057 157.8 mm 77.0 mm 14.0 mm
8058 90.3 mm 71.3 mm 22.0 mm
8059 130.0 mm 84.0 mm 25.0 mm
8060 99.7 mm 39.6 mm 16.0 mm
8061 189.6 mm 73.0 mm 16.8 mm
8062 189.6 mm 87.0 mm 16.8 mm
8064 155.1 mm 73.0 mm 19.5 mm
8067 85.2 mm 57.0 mm 15.0 mm
8068 83.9 mm 55.0 mm 15.0 mm
8069 86.7 mm 70.0 mm 17.0 mm
8070 46.5 mm 54.0 mm 17.0 mm
8071 58.8 mm 60.5 mm 17.0 mm
8074 200.0 mm 74.0 mm 18.5 mm
8077 99.2 mm 45.0 mm 13.1 mm
8078 103.5 mm 47.0 mm 16.0 mm
8081 189.7 mm 93.0 mm 17.0 mm
8082 123.0 mm 58.0 mm 15.0 mm
8083 189.7 mm 100.0 mm 17.0 mm
8084 164.7 mm 74.0 mm 16.7 mm
8085 86.8 mm 76.0 mm 17.0 mm
8086 131.0 mm 57.5 mm 18.0 mm
8087 163.6 mm 67.0 mm 25.0 mm
8088 189.6 mm 107.0 mm 18.0 mm
8089 131.6 mm 76.0 mm 15.7 mm
8090 132.0 mm 75.0 mm 22.0 mm
8091 189.6 mm 97.0 mm 16.0 mm
8093 130.3 mm 58.0 mm 28.5 mm
8096 188.0 mm 73.5 mm 18.5 mm
8100 163.6 mm 77.0 mm 29.0 mm
8102 163.6 mm 77.0 mm 21.0 mm
8103 163.6 mm 77.0 mm 31.0 mm
8113 113.0 mm 47.0 mm 17.0 mm
8127 110.3 mm 57.0 mm 14.0 mm
8129 102.0 mm 43.0 mm 12.5 mm
8173 163.6 mm 67.0 mm 31.0 mm
8174 137.0 mm 57.0 mm 17.0 mm
8175 110.4 mm 40.0 mm 16.0 mm
8185 95.0 mm 43.0 mm 15.2 mm
8189 116.0 mm 60.0 mm 18.8 mm
8191 132.0 mm 62.0 mm 29.0 mm
8192 152.0 mm 63.0 mm 28.5 mm
8193 100.0 mm 47.0 mm 22.0 mm
8194 163.6 mm 77.0 mm 26.0 mm
8195 121.0 mm 60.0 mm 17.0 mm
8197 143.0 mm 60.0 mm 27.0 mm
8200 127.8 mm 114.0 mm 18.2 mm
8201 175.0 mm 69.5 mm 19.5 mm
8203 189.7 mm 84.8 mm 15.5 mm
8204 126.8 mm 48.0 mm 17.5 mm
8208 109.7 mm 62.3 mm 16.0 mm
8214 129.9 mm 75.0 mm 16.7 mm
8222 163.0 mm 68.6 mm 25.0 mm
8237 132.0 mm 56.0 mm 17.0 mm
8238 187.6 mm 93.1 mm 16.9 mm
8239 189.7 mm 89.0 mm 17.0 mm
8240 rear 59.0 mm 54.5 mm 14.5 mm
8241 160.2 mm 69.3 mm 30.0 mm
8242 128.5 mm 56.9 mm 31.2 mm
8246 146.4 mm 67.8 mm 18.8 mm
8250 152.0 mm 63.0 mm 28.5 mm
8253 189.6 mm 97.0 mm 16.0 mm
8257 206.0 mm 87.0 mm 16.0 mm
9521 100.0 mm 59.0 mm 15.4 mm
