SKU: Pagid 1607 Brake Pad

Regular price
$445.58
Sale price
$445.58
Unit price
per

Pagid

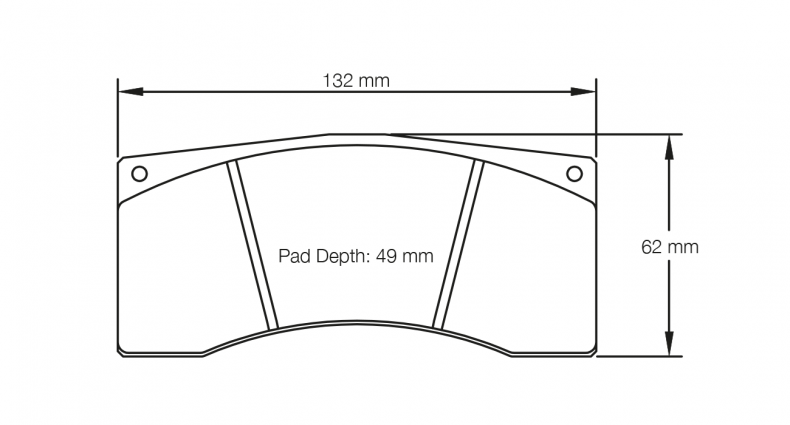

Pagid Brake Pad Set, AP, Alcon B-Type, Brembo 4pot. 132mm D49. 20mm RS14 Compound; I

Pagid Brake Pad Set, AP, Alcon B-Type, Brembo 4pot. 132mm D49. 20mm RS19-5 Compound; SO

Pagid Brake Pad Set, AP, Alcon B-Type, Brembo 4pot. 132mm D49. 20mm RS29 Compound; I

Pagid Brake Pad Set, AP, Alcon B-Type, Brembo 4pot. 132mm D49. 20mm RS42 Compound; SO

Pagid Brake Pad Set, AP, Alcon B-Type, Brembo 4pot. 132mm D49. 20mm RS44 Compound; SO

Pagid Brake Pad Set, AP, Alcon B-Type, Brembo 4pot. 132mm D49. 20mm RSL1 Compound; SO

Pagid Brake Pad Set, AP, Alcon B-Type, Brembo 4pot. 132mm D49. 20mm RST1Compound; SO

Pagid Brake Pad Set, AP, Alcon B-Type, Brembo 4pot. 132mm D49. 20mm RST2 Compound; SO

Pagid Brake Pad Set, AP, Alcon B-Type, Brembo 4pot. 132mm D49. 20mm RST3 Compound; SO

Vehicles

Make Model Build (Year) Front Rear
Aston Martin Vantage V8 GT4 ProDrive [race car] Alcon caliper 18 - X
Aston Martin Vantage V8 GTE [race car] 18 - X

Calipers

Make Type
Alcon B type [4441]
Brembo 07.5139. [type 132 or B13 family]
Wilwood GT 4000

Related Shape No.

Shape No. Thickness
1595 16.0 mm
1674 25.0 mm
2704 26.5 mm
8037 22.0 mm
8191 29.0 mm
8267 18.0 mm

Pagid RSL Compound

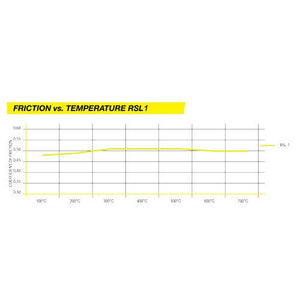

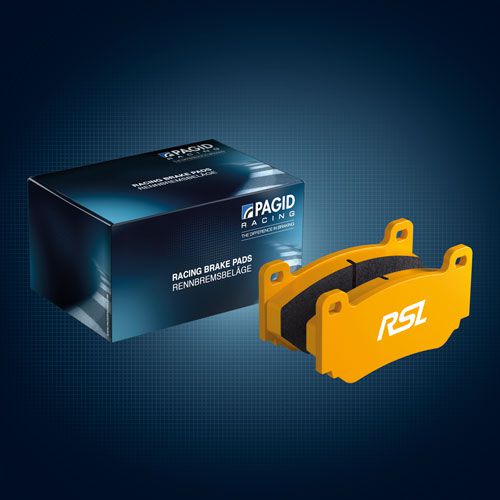

RSL 1

Pagid RSL 1 Best Practice::
RSL1 is best used as a front brake pad in GT cars, Touring cars and on Prototypes in endurance racing. Due to the high friction and good modulation, often used in sprint races as well. RSL 1 has an impressive tally of victories in the toughest Endurance races, including Le Mans, Daytona, Nürburgring, Sebring, Spa and others.

Pagid RSL 1 Compound Description::
RSL 1 is a low metallic resin bonded material containing steel and aramid fibers with high heat resistance. It maintains a constant friction level over a wide range of temperatures. Its low wear rate and disc friendliness make this material appropriate for endurance races.


Click for larger

Pagid RST Compound

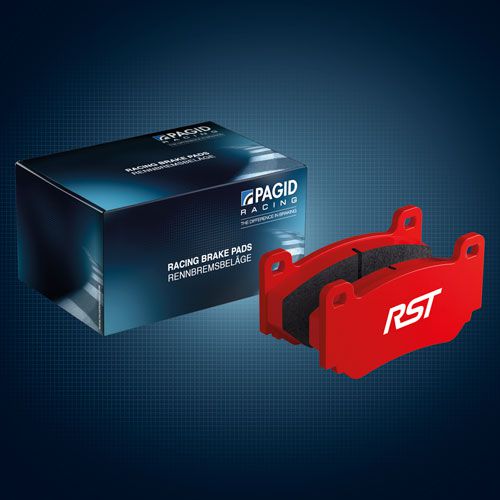

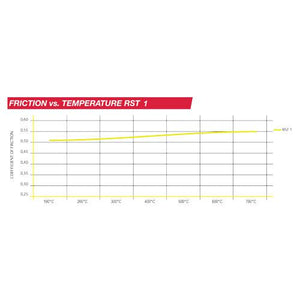

RST 1

Pagid RST 1 Best Practice::
RST 1 is intended for Tarmac Rally, GT, high downforce Formula cars, NASCAR, and Touring cars in sprint Circuit racing. Ideal for applications in heavy cars and where high torque is necessary against small diameter rotors.

Pagid RST 1 Compound Description::
RST 1 has a very high friction level and high temperature resistance. It is a semi metallic resin bonded material containing steel fibers. Cold friction and initial bite make this material most appropriate for Rally and NASCAR applications.


Click for larger

Pagid RST Compound

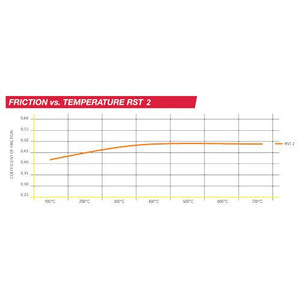

RST 2

Pagid RST 2 Best Practice::
RST 2 is intended as a medium friction compound Tarmac Rally, GT, high downforce Formula cars, NASCAR, and Touring cars in sprint Circuit racing.. Also used as rear pad in combination with RST 1 front. Recommended for GT and Touring Car racing on tracks where higher temperatures are an issue.

Pagid RST 2 Compound Description::
RST 2 is a semi metallic resin bonded material containing steel fibers. Cold friction and initial bite make this material most appropriate for Rally and NASCAR applications.


Click for larger

Pagid RST Compound

RST 3

Pagid RST 3 Best Practice::
Pagid RST3 is intended as a medium-high friction compound for use in Tarmac and Gravel Rally, GT, Touring, and Prototype circuit racing cars. It also excels on Formula cars and in club racing and a wide range of applications due to its combination of bite, friction and controllability. The release characteristic of RST 3 makes it ideal for use with ABS systems.

Pagid RST 3 Compound Description::
RST 3 is a metal-ceramic compound containing steel fibers and is therefore the perfect complement of the RST product family. It captivates by its low heat conductivity.


Click for larger

Pagid RST Compound

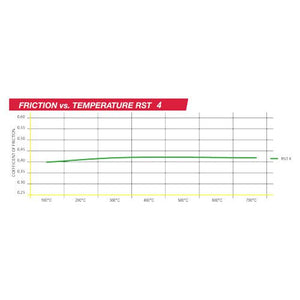

RST 4

Pagid RST 4 Best Practice::
RST 4 is intended as a medium friction pad compound for use in Formula cars and open wheel racing. RST 4 works well as a rear axle material for Rally (tarmac and gravel) and for all front engine cars. Also used in NASCAR on long ovals.

Pagid RST 4 Compound Description::
RST 4 is a semi metallic resin bonded material containing steel fibers. This material has a medium friction level and high temperature resistance.


Click for larger

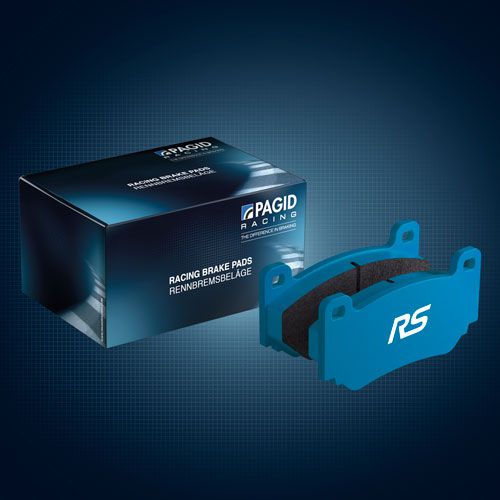

Pagid RS Compound

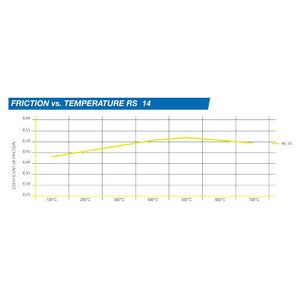

RS 14

Pagid RS 14 Best Practice::
RS 14, aka PAGID “Black”, is another of the cornerstone Pagid Racing pad compounds, and has seen years of success in GT cars, Touring cars for club racing and track days. Indeed, it remains a favorite in all of those venues to this day. RS 14 is an excellent all-around pad compound.

Pagid RS 14 Compound Description::
RS 14 features good all-around characteristics for many applications. It is a low metallic resin bonded material containing steel and aramid fibers.


Click for larger

Pagid RS Compound

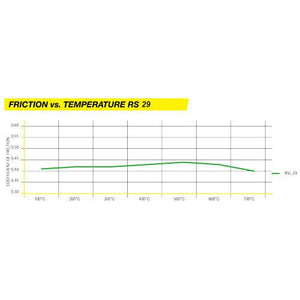

RS 29

Pagid RS 29 Best Practice::
RS 29 is a legend in Endurance Racing, and has an unmatched history of success since its introduction as RS29. It remains very popular in club racing and track days. In addition, it is still found on GT, Touring cars, and Prototypes, and still enjoys a reputation as a great all-around friction material for endurance racing. Due to excellent modulation characteristics also often used in sprint races.

Pagid RS 29 Compound Description::
RS 29 features very good modulation and release characteristics. It is a low metallic resin bonded material containing steel and aramid fibers. The friction level of the material maintains constant at a low-medium level. Another advantage is the easy bedding in behavior.


Click for larger

Pagid RS Compound

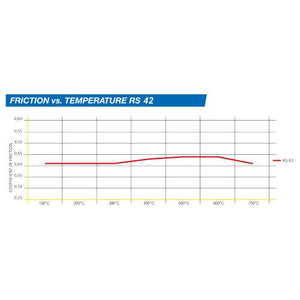

RS 42

Pagid RS 42 Best Practice::
RS 42, or Pagid “Blue”, is another of the “cornerstone” Pagid Racing compounds that is still finding favor after many years of service. It is currently best used as a classic rally pad and remains very popular in small formula and touring cars, especially as a rear axle compound.

Pagid RS 42 Compound Description::
RS 42 is a low metallic resin bonded material containing steel and aramid fibers. The characteristics make this material appropriate for small formula cars.


Click for larger
