Pagid 1283 Brake Pad
Pagid 1283 Brake Pad
Pagid 1283 Brake Pad

Pagid 1283 Brake Pad

SKU: Pagid 1283 Brake Pad

Regular price
$219.61
Sale price
$219.61
Unit price
per

Popular Products

Pagid


Pagid Brake Pad Set, Brembo 4pot F3, XA3A4, Wilwood IR-GT, AP Alcon 100mm D43. 20mm RS14 Compound; SO

Pagid Brake Pad Set, Brembo 4pot F3, XA3A4, Wilwood IR-GT, AP Alcon 100mm D43. 20mm RS29 Compound; SO

Pagid Brake Pad Set, Brembo 4pot F3, XA3A4, Wilwood IR-GT, AP Alcon 100mm D43. 20mm RS42 Compound; SO

Pagid Brake Pad Set, Brembo 4pot F3, XA3A4, Wilwood IR-GT, AP Alcon 100mm D43. 20mm RS44 Compound; SO

Pagid Brake Pad Set, Brembo 4pot F3, XA3A4, Wilwood IR-GT, AP Alcon 100mm D43. 20mm RST1 Compound; SO

Pagid Brake Pad Set, Brembo 4pot F3, XA3A4, Wilwood IR-GT, AP Alcon 100mm D43. 20mm RST2 Compound; SO

Pagid Brake Pad Set, Brembo 4pot F3, XA3A4, Wilwood IR-GT, AP Alcon 100mm D43. 20mm RST3 Compound; SO

Pagid Brake Pad Set, Brembo 4pot F3, XA3A4, Wilwood IR-GT, AP Alcon 100mm D43. 20mm RST4 Compound; SO

Vehicles

Make Model Build (Year) Front Rear
Maserati Trofeo GT4 16 - X
Maserati Trofeo MC 13 - X
Mitsubishi Lancer Evo IX Gravel Rally 05 - 07 X
Mitsubishi Lancer Evo X Gravel Rally / FIA Gr. N 07 - 16 X
Mitsubishi Lancer Evo X Tarmac Rally [Brembo Caliper] 07 - 16 X
Tatuus F3 [Brembo Caliper] 18 - X X

Calipers

Make Type
Alcon SR, CAR22 [4422] D43
AP Racing CP5510 D43
Brembo 07.5064. [type 100 or B09 family]
Brembo XB2.15.11/12 (F3 caliper)
Wilwood IR - GT

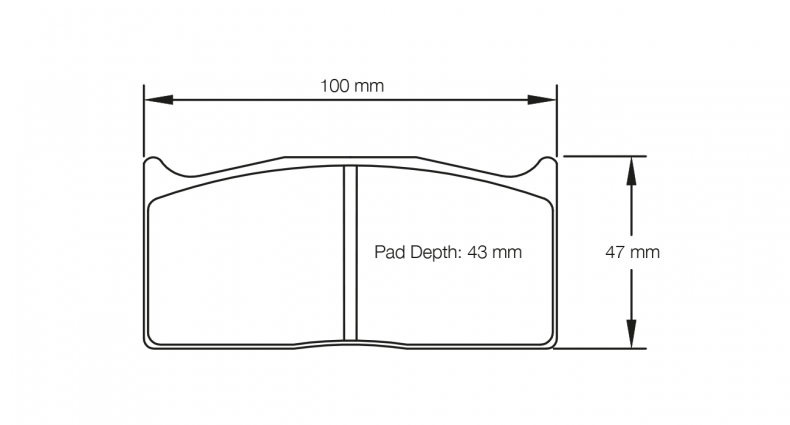

Related Shape No.

Shape No. Thickness
1705 16.0 mm
8193 22.0 mm

Pagid RST Compound

RST 1

Pagid RST 1 Best Practice::
RST 1 is intended for Tarmac Rally, GT, high downforce Formula cars, NASCAR, and Touring cars in sprint Circuit racing. Ideal for applications in heavy cars and where high torque is necessary against small diameter rotors.

Pagid RST 1 Compound Description::
RST 1 has a very high friction level and high temperature resistance. It is a semi metallic resin bonded material containing steel fibers. Cold friction and initial bite make this material most appropriate for Rally and NASCAR applications.


Click for larger

Pagid RST Compound

RST 2

Pagid RST 2 Best Practice::
RST 2 is intended as a medium friction compound Tarmac Rally, GT, high downforce Formula cars, NASCAR, and Touring cars in sprint Circuit racing.. Also used as rear pad in combination with RST 1 front. Recommended for GT and Touring Car racing on tracks where higher temperatures are an issue.

Pagid RST 2 Compound Description::
RST 2 is a semi metallic resin bonded material containing steel fibers. Cold friction and initial bite make this material most appropriate for Rally and NASCAR applications.


Click for larger

Pagid RST Compound

RST 3

Pagid RST 3 Best Practice::
Pagid RST3 is intended as a medium-high friction compound for use in Tarmac and Gravel Rally, GT, Touring, and Prototype circuit racing cars. It also excels on Formula cars and in club racing and a wide range of applications due to its combination of bite, friction and controllability. The release characteristic of RST 3 makes it ideal for use with ABS systems.

Pagid RST 3 Compound Description::
RST 3 is a metal-ceramic compound containing steel fibers and is therefore the perfect complement of the RST product family. It captivates by its low heat conductivity.


Click for larger

Pagid RST Compound

RST 4

Pagid RST 4 Best Practice::
RST 4 is intended as a medium friction pad compound for use in Formula cars and open wheel racing. RST 4 works well as a rear axle material for Rally (tarmac and gravel) and for all front engine cars. Also used in NASCAR on long ovals.

Pagid RST 4 Compound Description::
RST 4 is a semi metallic resin bonded material containing steel fibers. This material has a medium friction level and high temperature resistance.


Click for larger

Pagid RS Compound

RS 14

Pagid RS 14 Best Practice::
RS 14, aka PAGID “Black”, is another of the cornerstone Pagid Racing pad compounds, and has seen years of success in GT cars, Touring cars for club racing and track days. Indeed, it remains a favorite in all of those venues to this day. RS 14 is an excellent all-around pad compound.

Pagid RS 14 Compound Description::
RS 14 features good all-around characteristics for many applications. It is a low metallic resin bonded material containing steel and aramid fibers.


Click for larger

Pagid RS Compound

RS 29

Pagid RS 29 Best Practice::
RS 29 is a legend in Endurance Racing, and has an unmatched history of success since its introduction as RS29. It remains very popular in club racing and track days. In addition, it is still found on GT, Touring cars, and Prototypes, and still enjoys a reputation as a great all-around friction material for endurance racing. Due to excellent modulation characteristics also often used in sprint races.

Pagid RS 29 Compound Description::
RS 29 features very good modulation and release characteristics. It is a low metallic resin bonded material containing steel and aramid fibers. The friction level of the material maintains constant at a low-medium level. Another advantage is the easy bedding in behavior.


Click for larger

Pagid RS Compound

RS 42

Pagid RS 42 Best Practice::
RS 42, or Pagid “Blue”, is another of the “cornerstone” Pagid Racing compounds that is still finding favor after many years of service. It is currently best used as a classic rally pad and remains very popular in small formula and touring cars, especially as a rear axle compound.

Pagid RS 42 Compound Description::
RS 42 is a low metallic resin bonded material containing steel and aramid fibers. The characteristics make this material appropriate for small formula cars.


Click for larger

Pagid RS Compound

RS 44

Pagid RS 44 Best Practice::
RS 44 is a close relative of RS 42, and has a similar history of success. Known as RS4-4 or Pagid “Orange” in the past, it is a good rear axle pad for all front engine cars. Very popular club racing compound.

Pagid RS 44 Compound Description::
RS 44 works for formula cars all the way up to lighter passenger cars. It is a low metallic resin bonded material containing steel and aramid fibers. The smooth progression of friction from cold to hot makes this material easy to work with.
