Longacre - Wireless Deluxe Tablet 15" 1500lb Single Cell CNC Machined Pads*

Longacre - Wireless Deluxe Tablet 15" 1500lb Single Cell CNC Machined Pads*

SKU: LA72715
Secure wireless connection from the pads directly to the tablet. No extra boxes needed like some wireless systems. Convenient, no clutter.

Regular price
$1,999.99
Sale price
$1,999.99
Unit price
per

Longacre
Computerscales® WIRELESS 7" Tablet XLi™ Single Load Cell


Description
Longacre, 72715

Computerscales on a tablet
This is the future of chassis setups. This tablet has many times the capacity of any dedicated scale control box. This scale was designed from the ground up as a tablet based system, not an add-on to an existing model. The wireless signal goes directly from the pads to the tablet without any bulky re-transmitter boxes needed. In the future Longacre will have many more 'apps' for various setup functions.

•Computerscales® WIRELESS 7" Tablet XLi™ Single Load Cell

•Tablet Included

•7" Android™ tablet with high resolution screen, case, screen protector and stylus included

•Ready to Use Right Out of the Box

•From the pads directly to the tablet. No extra boxes needed like some wireless systems. Convenient, no clutter.

•Customizable Display

•Change the main screen display order to suit your preferences. Show only what you want to see, rotate or change the car icon, change the partial weight % resolution or weight units.

•Alternate High Contrast Display

•Easier to read in bright sunlight with a swipe of the screen

•Download the latest Computerscales® XLi Tablet app v1.18 to your Android OS device and try the features in DEMO mode. App is optimized for a 7" tablet and tested on a Samsung Tab 3. This is the full app with all features enabled but operates in DEMO mode with no pads connected. DEMO mode simply puts sample weights on the corners.

Note: Longacre ComputerScales are not designed for, certified for or recommended for use with any manned aircraft.


Features
Longacre, 72715

Tablet Included
The tablet included is an Android™ based model and can support other 'apps'. Computerscales XLi app is pre-installed and the entire system is ready to use. (Tablet brand / model may vary.)

Metric switchable from the setup screen

•All your partial weights & %'s can be seen. Scroll thru the options with your fingertip

•Shows Memory weights and current weights AT THE SAME TIME so you can easily compare (50 memory storage)

•Weights and car icon can be rotated on the display for easy viewing from any position - front, rear, sides

•Customizable display - Easily tap your preferences in the order you want them displayed. You can even add a blank line if you want to separate %s. Select as many or few as you want. Up to 5 will be shown on the main display but you can access the others scrolling the list up or down. You can also change partial weight % resolution and weight units.

•Pad battery status shown on display for each corner

•Tablet battery status shown right on the app display (app version 1.17 and above)

•Tablet operates while plugged into the charger

•4 different car icons are available - Stock car, Modified, Open wheel & Kart

•Deluxe Single cell pads are CNC machined internally - flat to .010".

•Bright Sunlight screen mode for easier viewing outdoors


Includes
Longacre, 72715

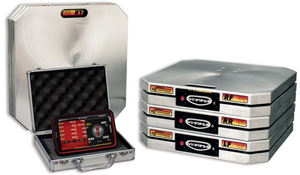

•System includes 7" Android™ tablet (color may vary) with full color high-res screen and Computerscales XLi app pre-installed, storage case for tablet and 15" x 15" x 2.5" scale pads with 1500 lbs. per pad capacity (set of 4)


Additional Information
Longacre, 72715

NIST Certification
Load cells and scale systems from Longacre Racing Products are tested and calibrated to the standards traceable to the National Institute of Standards and Technology (NIST) and are part of a comprehensive measurement assurance program for ensuring continued accuracy and measurement traceability.

•esting is accredited by the National Institute of Standards and Technology (NIST) through the National Voluntary Laboratory Accreditation Program (NVLAP) for specific scope of accreditation under lab code 200446-0. This laboratory meets the requirements of ISO/IEC 17025 and ANSI/NCSL Z540-1.

•Accuracy is equal to .1%.


Media & Downloads
Longacre, 72715

LA72715 - Instructions

Scaling A Race Car Made Simple

Scaling A Race Car Properly
