Longacre

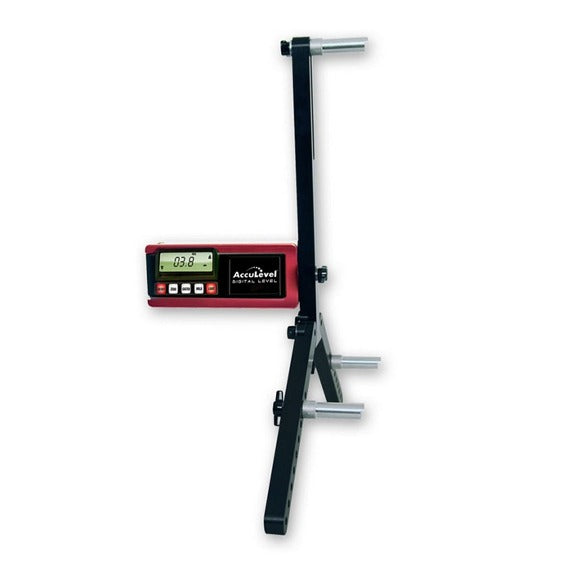

Digital C/C Gauge w AccuLevel™ and Quick Set™ LW Adapter

Description
Longacre, 78298

•Here's a super accurate digital caster / camber gauge that reads to .1º (1/10º) camber and to .1º caster as high as needed.

•It comes with the Longacre QuickSet™ LW adapter and a silver carrying case.

•As an additional benefit the AccuLevel™digital readout can be removed and used separately as a digital angle finder for suspension, spoiler angles, and many other things.

QuickSet™ LW Adapter
This is the fastest way to check your front end alignment. Just hold it against the rim for easy, accurate readings. No spindle adapters required here. Made from CNC machined billet aluminum. Works on most any race car, 13" to 22" aluminum , 'feet' adapt to wheel bead. 3 point design makes setting caster easier. Folds for easy storage.

Includes
Longacre, 78298

•Digital Caster/Camber Gauge

•AccuLevel™ Pro Model with back light (removable)

•QuickSet™ LW adapter

•Silver carrying case

Media & Downloads
Longacre, 78298

LA78298: Digital-caster-camber-quickset-acculevel-78298v5.pdf

LA78298: Caster-simplified.pdf

LA78298: Camber-simplified.pdf

Specifications
Longacre, 78298

Caster Camber Gauge

Housing Material: Billet Aluminum

Finish: Red anodized

Camber Increments: .1°

Positive Camber Adjustments: 0 to +90°

Negative Camber Adjustments: 0 to -90°

Caster Increments: .1°

Positive Caster Adjustments: 0 to +90°

Negative Caster Adjustments: 0 to -90°

Backlit Display: Yes

Bubble Level Included: Yes

Adapter Included: Yes

AccuLevel™ Removable: Yes

Case Included: Yes

Bolt Size: 5/16"-18

Adapter

Style: Dunlop™ style

Wheel Range: 13" - 22"

Material: Billet Aluminum

Finish: Black anodized
