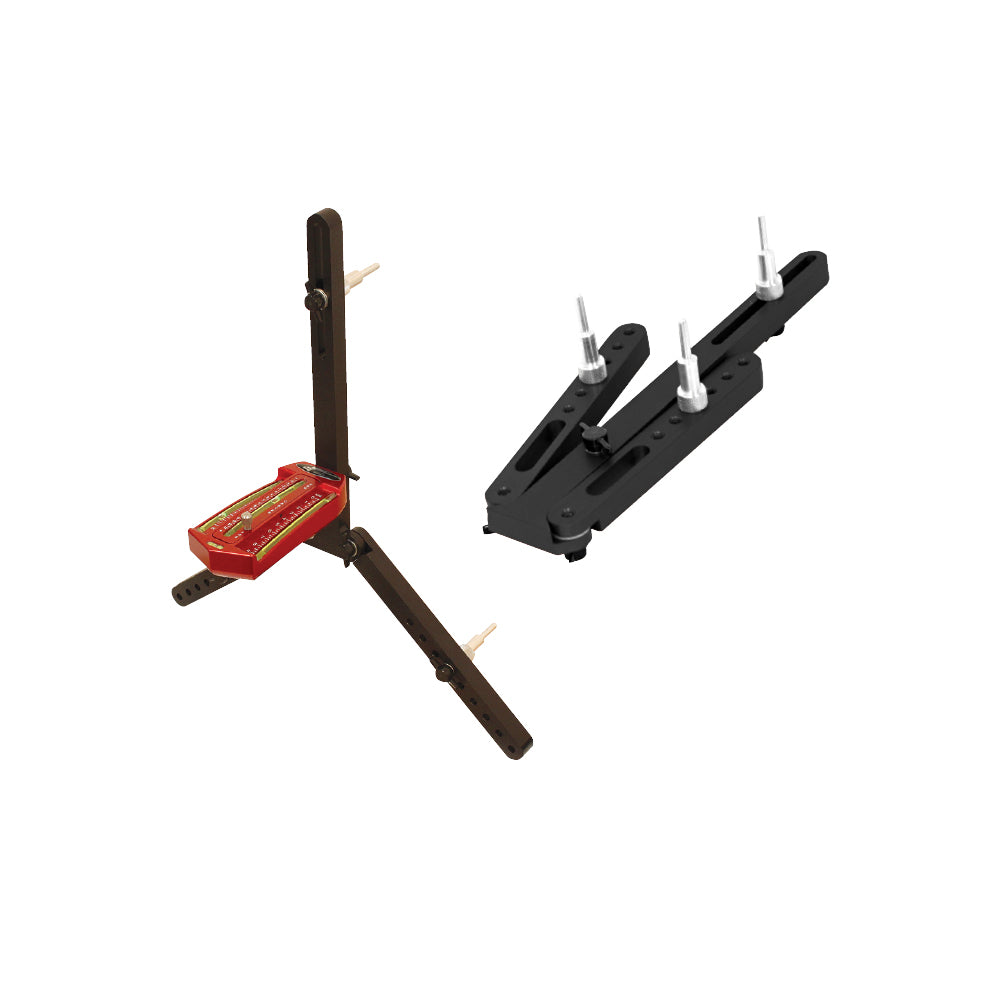

Longacre Billet Caster / Camber Gauge w/ Quick Set™ Adapter

Longacre Billet Caster / Camber Gauge w/ Quick Set™ Adapter

SKU: LA78274

Regular price
$259.99
Sale price
$259.99
Unit price
per

Popular Products

Longacre
Billet Caster / Camber Gauge w/ Quick Set™ Adapter

Billet Caster Camber Gauge

Expanded Range

  • Reads Camber from +9º to -9º, accurate to better than 1/4º
  • Caster reads from +12º to -4º
  • Glow-in-the-Dark vials - much easier to read even in good light
  • CNC machined billet aluminum - polished, Bright Dip anodized, Laser etched
  • Can measure caster with or without turnplates (still best accuracy if used with turnplates)
  • Includes hard case

QuickSet™ Adapter
This is the fastest way to check your front end alignment. Just hold it against the rim for easy, accurate readings. No spindle adapters required here. Billet aluminum fully CNC machined. Rigid for accurate readings. Three-leg design squares gauge to your wheel.

Works on most any race car, 12" to 17" wheel. 3 point design makes setting caster easier. Folds for easy storage.

Pointers on this model are designed for formed wheels. The tip goes inside the bead of the wheel and centers the gauge.

Specifications
Caster Camber Gauge
Material: Billet Aluminum
Finish: Red anodized
Camber Increments: 1/4°
Positive Camber Adjustments: 0 to +9°
Negative Camber Adjustments: 0 to -9°
Caster Increments: 1/2°
Positive Caster Adjustments: 0 to +12°
Negative Caster Adjustments: 0 to -4°
Bubble Level Included: Yes
Adapter Included: Yes
Case Included: Yes
Bolt Size: 5/16"-18
Adapter
Style: Dunlop™ style
Wheel Range: 12" - 17"
Material: Billet Aluminum
Finish: Black anodized
