Longacre

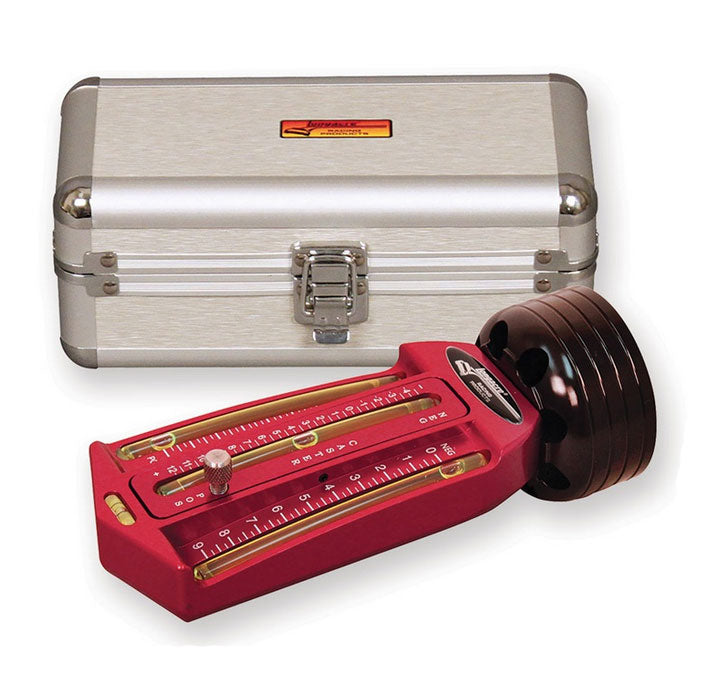

Billet Caster / Camber Gauge with Magnetic Adapter

Description
Longacre, 78272

Billet Caster Camber Gauge

Expanded Range

•Reads Camber from +9º to -9º, accurate to better than 1/4º

•Caster reads from +12º to -4º

•Glow-in-the-Dark vials - much easier to read even in good light

•CNC machined billet aluminum - polished, Bright Dip anodized, Laser etched

•NEW Super Magnetic Adapter - stronger pull - Uses 8 premium 'Rare Earth' magnets to hold to your hub better, CNC machined after installation of magnets for a dead flat surface and the highest accuracy possible

•Can measure caster with or without turnplates (still best accuracy if used with turnplates)

•Includes silver carrying case

Media & Downloads
Longacre, 78272

LA78272: Caster-camber-gauge-78260.pdf

LA78272: Camber-simplified.pdf

LA78272: Caster-simplified.pdf

Specifications
Longacre, 78272

Caster Camber Gauge

Material: Billet Aluminum

Finish: Red anodized

Camber Increments: 1/4°

Positive Camber Adjustments: 0 to +9°

Negative Camber Adjustments: 0 to -9°

Caster Increments: 1/2°

Positive Caster Adjustments: 0 to +12°

Negative Caster Adjustments: 0 to -4°

Bubble Level Included: Yes

Adapter Included: Yes

Case Included: Yes

Bolt Size: 5/16"-18

Adapter

Style: Magnetic

Material: Billet Aluminum

Finish: Black anodized

Adapter Diameter: 3.0"

Center Hole Diameter: 1.5"

Center Hole Depth: 1.0"
