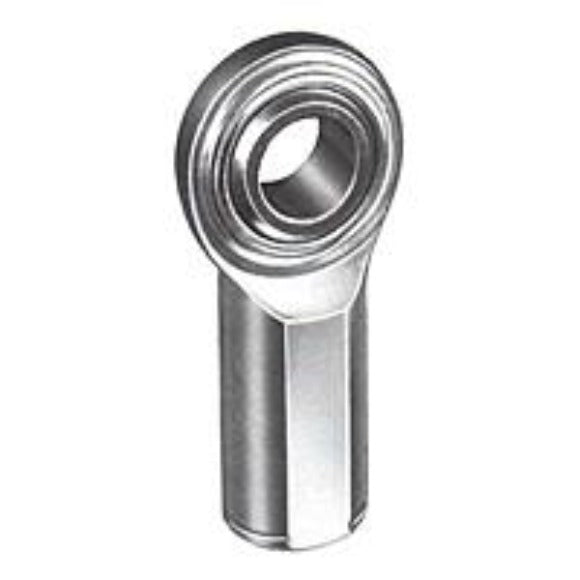

CW and CG Series Female Rod Ends - General Purpose - Economy

CW and CG Series Female Rod Ends - General Purpose - Economy

SKU: AU-CW-3

Regular price
$5.05
Sale price
$5.05
Unit price
per

Popular Products

CW and CG Series Female Rod Ends - General Purpose - Economy

Description

ROD END NO. DIMENSIONS IN INCHES
Right Hand Left Hand Thread UNF-2B B
+ .0025
-.0005
W
± .005
H
Ref.
a° Misalign. Angle
AU-CW-3 AU-CG-3 10-32 0.1900 0.312 0.234 20
AU-CW-4 AU-CG-4 1/4-28 0.2500 0.375 0.250 27
AU-CW-5 AU-CG-5 5/16-24 0.3125 0.437 0.312 22
AU-CW-6 AU-CG-6 3/8-24 0.3750 0.500 0.359 22
AU-CW-7 AU-CG-7 7/16-20 0.4375 0.562 0.406 21
AU-CW-8 AU-CG-8 1/2-20 0.5000 0.625 0.453 20
AU-CW-10 AU-CG-10 5/8-18 0.6250 0.750 0.484 26
