CEJN Adapters (Regulator to Hose)

CEJN Adapters (Regulator to Hose)

SKU: CEJN-10-410-5404

Regular price
Sale price
Unit price

Adapters (Regulator to Hose)

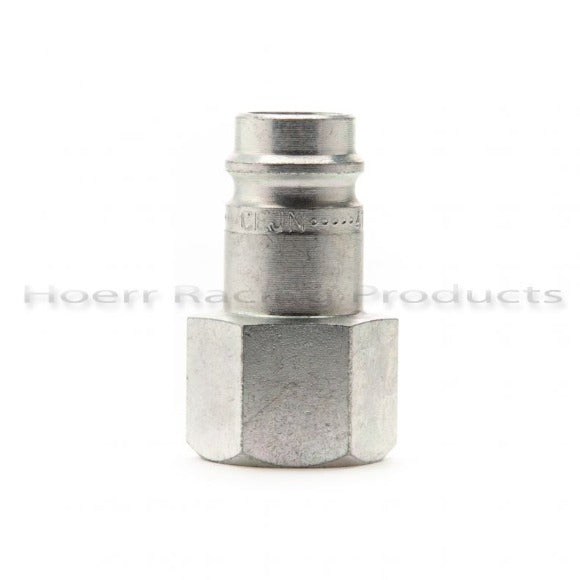

CEJN Series 410 nipple, DN 10.4 Interchange. 10.4mm Flow Diameter. 3/8" Female NPT

Series 410 – Standard

• Extremely high flow capacity
• Full automatic operation
• Strong and durable

CEJN, 10-410-5404

Series 410 couplings are an original CEJN design that has become a European standard. The Series is one-hand operated and offers long service life. A wide range of connections is available, as well as anti-hose whip nipples.

The Series eSafe 410 version is disconnected in two stages in order to vent the coupling and minimize the risk of sudden component separation, which has the potential to cause operator injury. The one-hand operation ensures easy handling. The eSafe version complies with ISO Standard 4414 and EN 983 and has a steel front part as standard.

Series 410 is also available in a Vented Safety version. Please refer to the CEJN Fluid range for specialized versions of Series 410 with brass nipples (Series 411), high-pressure straight-through design (Series 412), two-way shutoff (Series 414), and stainless steel construction (Series 416).

Technical Data
CEJN, 10-410-5404

Nominal flow diameter:
13/32” (10.4 mm)
Air flow @ 100 PSI:
130.2 CFM (3900 l/min)
Max. working pressure:
232 PSI (16 bar)
Min. burst pressure:
2030 PSI (140 bar)
Temperature range:
-4°F – +212°F (-20°C – +100°C)
Material coupling:
Zinc-plated steel/brass
Material nipple:
Hardened zinc-plated steel
Connection force:
105.2 N
CEJN Original, Eurostandard 10.4mm

Flow capacity is measured at 87 PSI (6 bar) inlet pressure, and pressure drop at 7 PSI (0.5 bar).
