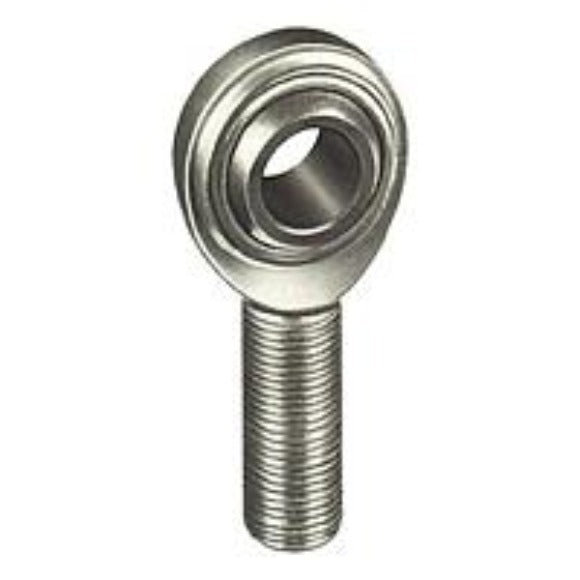

Aurora CM and CB Series Male Rod Ends - General Purpose (Economy)

Aurora CM and CB Series Male Rod Ends - General Purpose (Economy)

SKU: AU-CM-3

Regular price
$5.15
Sale price
$5.15
Unit price
per

Popular Products

Aurora
CM and CB Series Male Rod Ends - General Purpose (Economy)

Description

ROD END NO. DIMENSIONS IN INCHES
Right Hand Left Hand Thread UNF- 3A B
+ .0025
-.0005
W
± .005
H
Ref
a° Mis- align. Angle
AU-CM-3 AU-CB-3 10-32 0.1900 0.312 0.234 20
AU-CM-4 AU-CB-4 1/4-28 0.2500 0.375 0.250 27
AU-CM-5 AU-CB-5 5/16-24 0.3125 0.437 0.312 22
AU-CM-6 AU-CB-6 3/8-24 0.3750 0.500 0.359 22
AU-CM-7 AU-CB-7 7/16-20 0.4375 0.562 0.406 21
AU-CM-8 AU-CB-8 1/2-20 0.5000 0.625 0.453 20
AU-CM-10 AU-CB-10 5/8-18 0.6250 0.750 0.484 26
AU-CM-12 AU-CB-12 3/4-16 0.7500 0.875 0.593 24
AU-CM-12-12 --- 3/4-16 0.7570 0.875 0.593 24
